Software Upgrade

Prelude OneBoard provide a simple software upgrade system.

Check the Vendor Support table to know what Operating Systems are supported.

Note

The Software Upgrade system in Prelude is a preview of a more complete feature that will come later.

Software Packages

Before starting an upgrade, you need to upload in Prelude the required packages.

To add Software packages in Prelude OneBoard, navigate to Maintenance > Software Upgrade and then Manage Versions.

Menu software upgrade

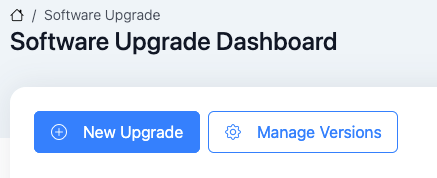

Menu software versions

Create a new Software Version:

  • Version Name a distinguished name
  • Operating System the target operating system
  • Version The version identifier

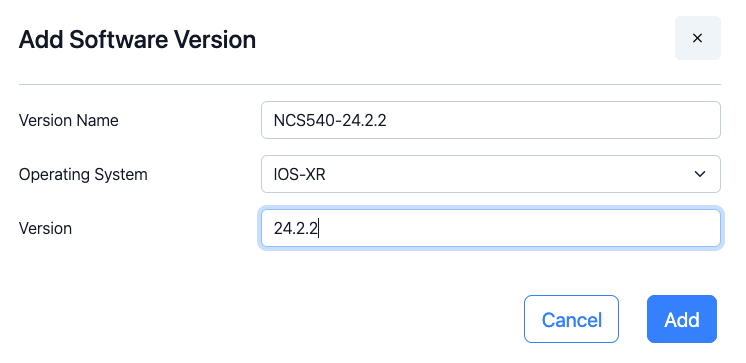

Add software version

Then, add all the required files:

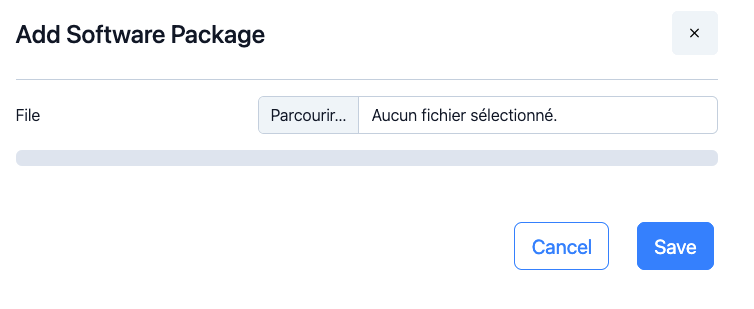

Add software files

You can now, start an upgrade using this version.

Software Upgrade

To start a Software Upgrade in Prelude OneBoard, navigate to Maintenance > Software Upgrade.

Menu software upgrade

Then, click New Upgrade and fill the form:

  • Device select the device to upgrade
  • Version select the version to install
  • Ask Validation if enabled, the system will ask validation before starting each upgrade step

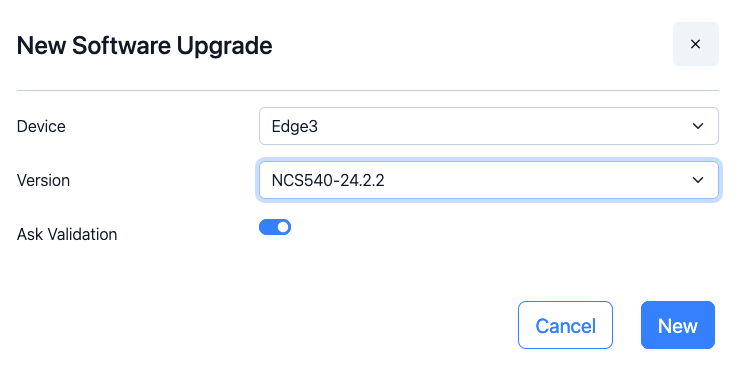

Start software upgrade

Then, the upgrade process will start and ask for validation, if asked for it.

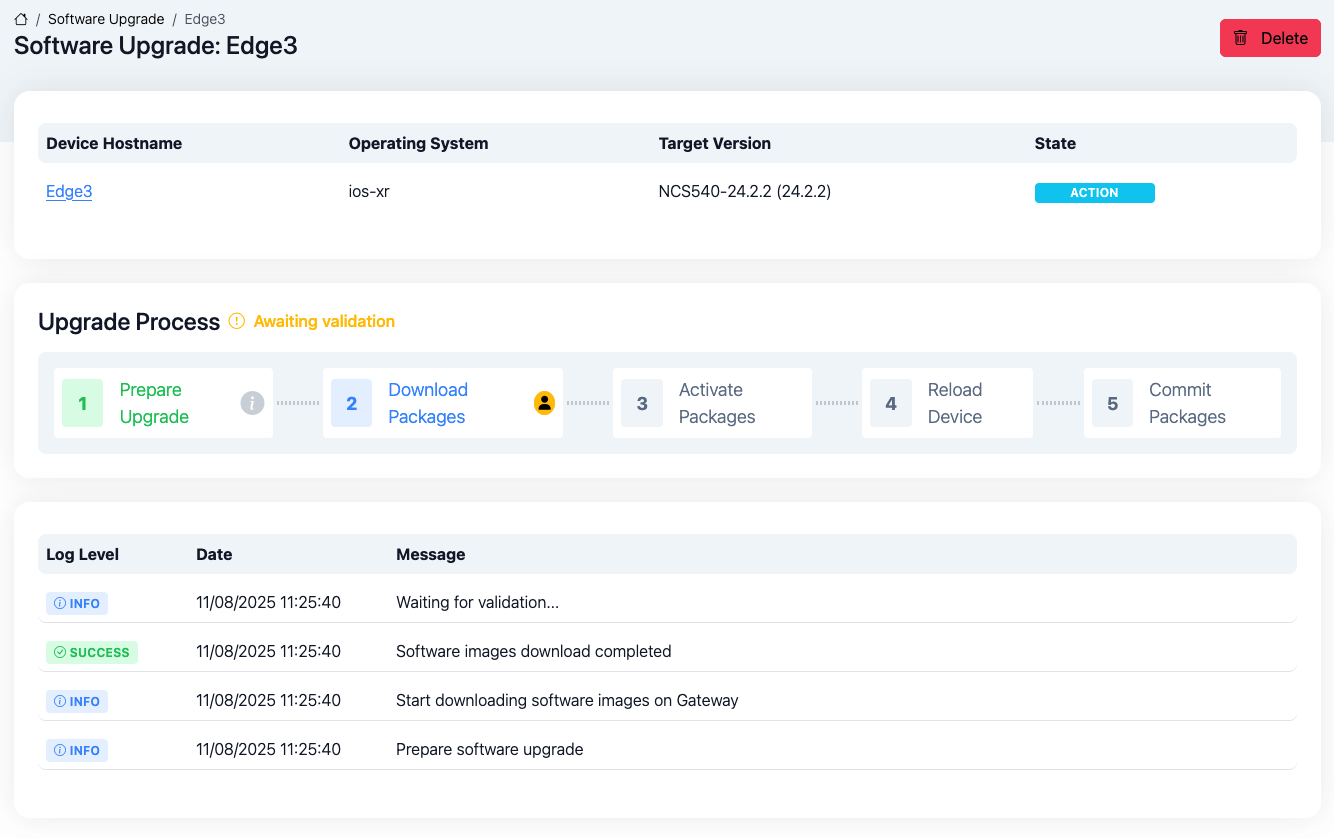

Software upgrade process

In case of failure, you can restart the upgrade process from any successful state.
