Infrastructure Devices

The infrastructure Devices view in Prelude OneBoard allow you to easily identify where your services are and set some parameters on interfaces.

Services Inventory

Device view

On the device view, you can easily identify which interface is supporting your customer or infrastructure services.

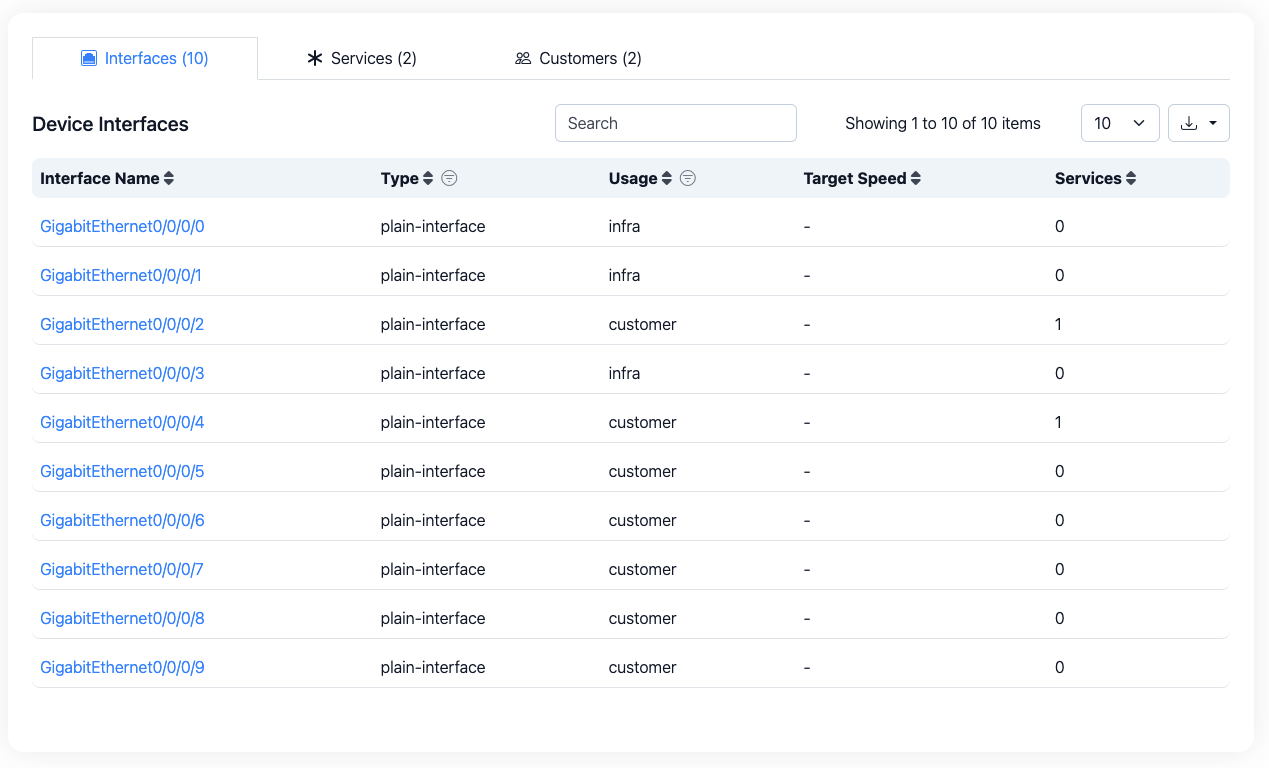

Infra Devices interfaces

Which are the services configure on this device.

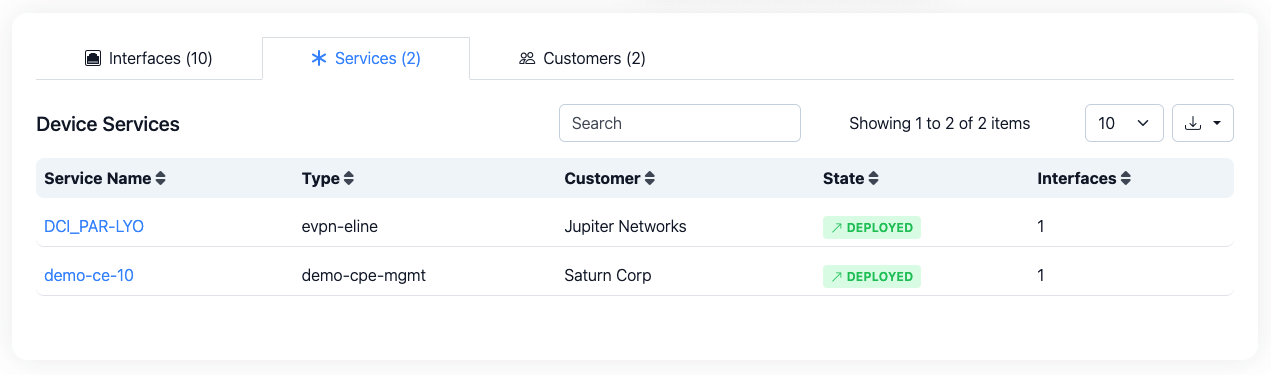

Infra Devices services

And what customers have services on this device.

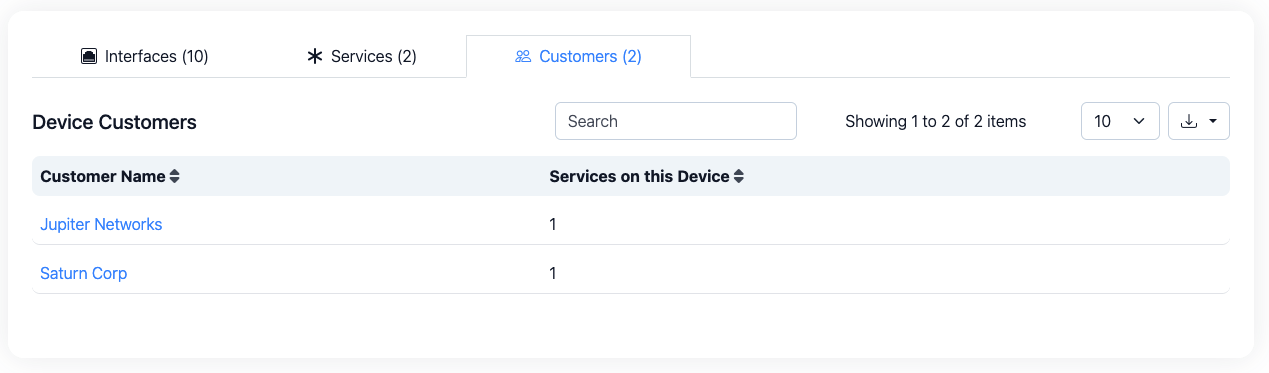

Infra Devices customers

Interface view

On the device interface view, you can easily identify which services are using this interface.

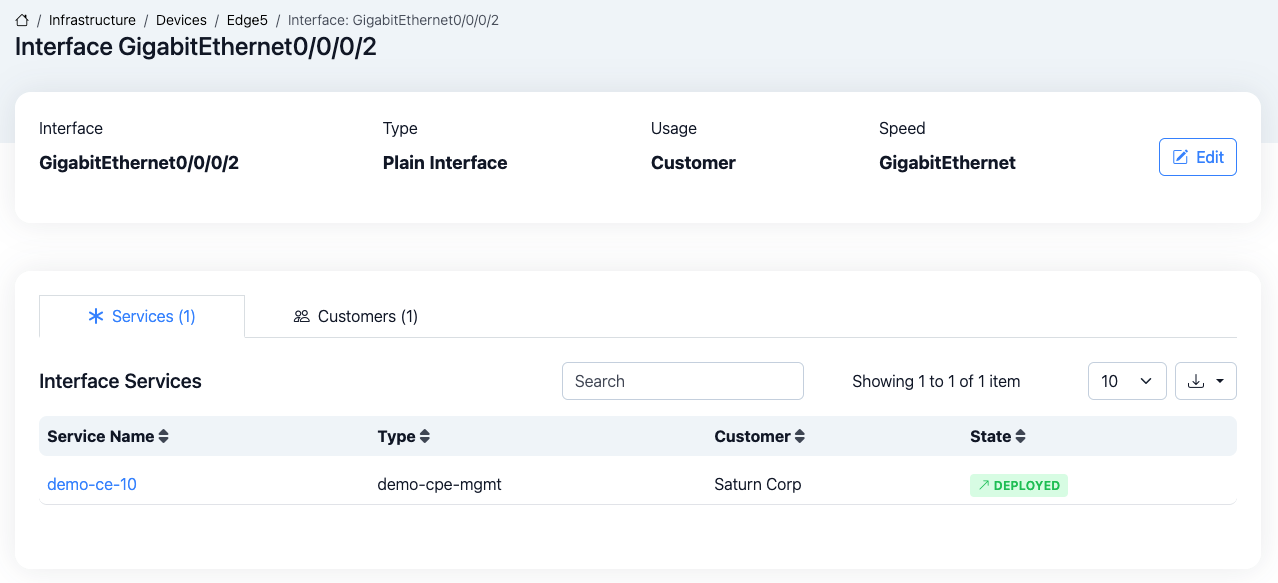

Infra Interface services

And what customers have services on this interface.

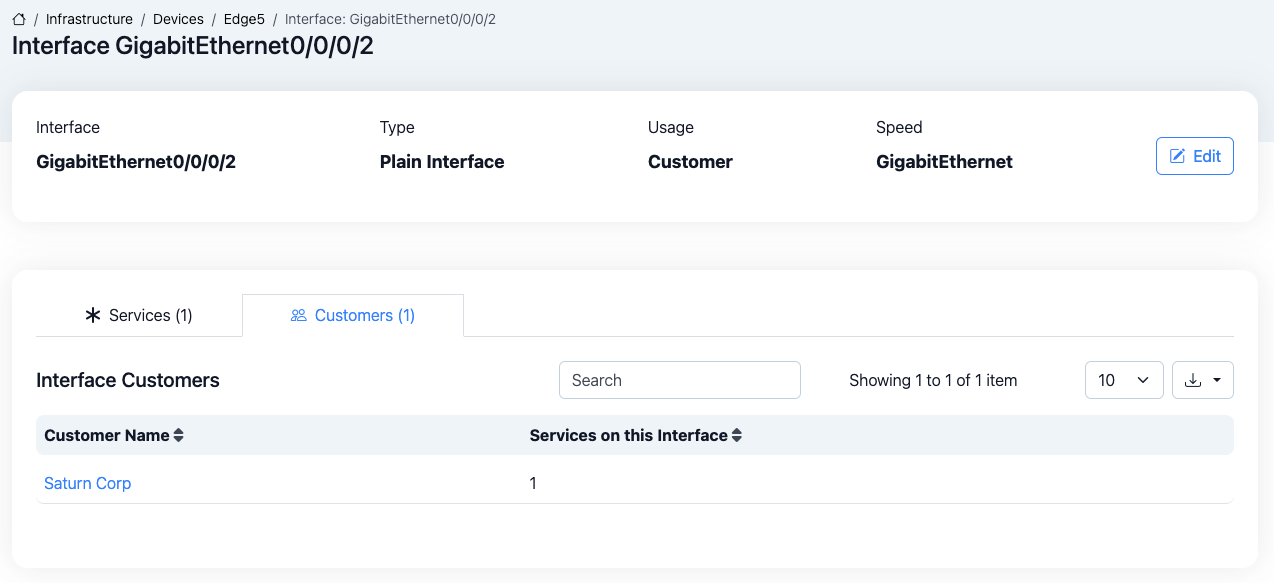

Infra Interface customers

Interface settings

From the infrastructure interface view, you can set some parameters of the interface:

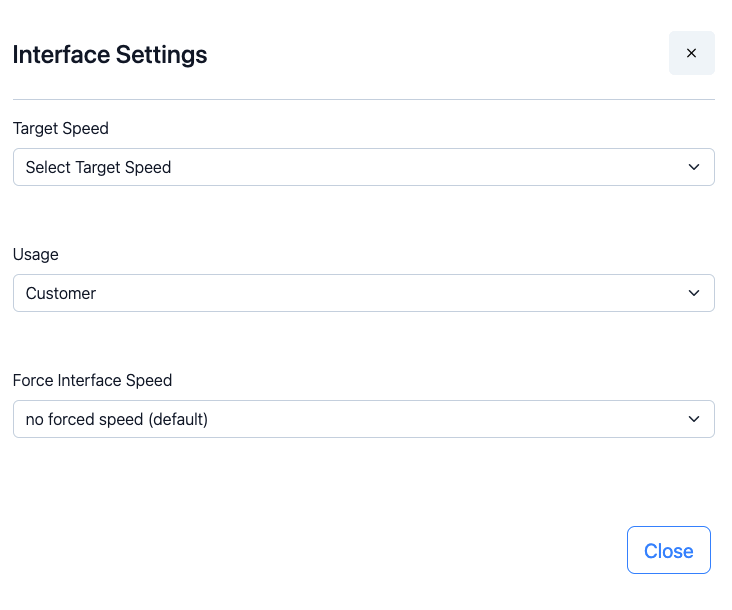

Infra Interface settings

Target Speed

This is a Cisco IOS-XR specific parameter that allow to specify that the configuration to push on this interface needs to use a different speed than the current one.

For exemple if the interface is currently TenGigE0/0/2/12, but after plugging a new SFP it will become GigabitEthernet0/0/2/12, setting the Target Speed to GigabitEthernet will push the configuration as preconfigure.

Usage

To specify if this interface can be used to configure customer services or infrastructure services.

  • Customer services LxVPN, Internet Access, etc. They are services on interfaces facing a customer's device
  • Infrastructure services IGP, etc. They are services on interfaces facing internal infrastructure

Force Interface Speed

This is a Cisco specific parameter that allow to force the interface speed to 1Gbps or lower.

Options are : auto-negotiation, 1G, 100M & 10M
