Cisco NSO connector

To add a Prelude Gateway to your Prelude instance, log in Prelude OneBoard

Access Credentials

First, we need to create a new Access Credentials.

Register a Cisco NSO

Then, go in the Application Settings > Connectors view.

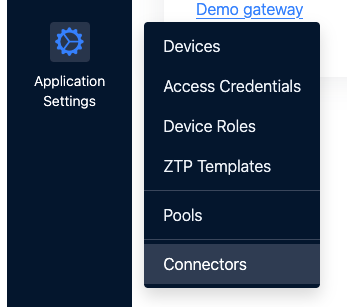

Connectors menu

Then, select the Cisco NSO tab and click + New.

  • NSO Name A name to identify which NSO you are adding in case of multi-NSO setup
  • IP Use the IP address of your NSO host or nso if you are using the NSO docker image
  • Port The NETCONF northbound API port, by default 2022
  • Credentials Select in the list the Access Credentials created earlier

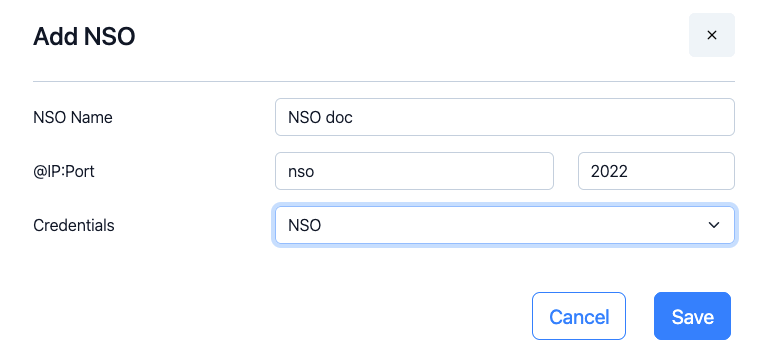

NSO Connector form

Make sure that your newly created NSO instance state is connected.

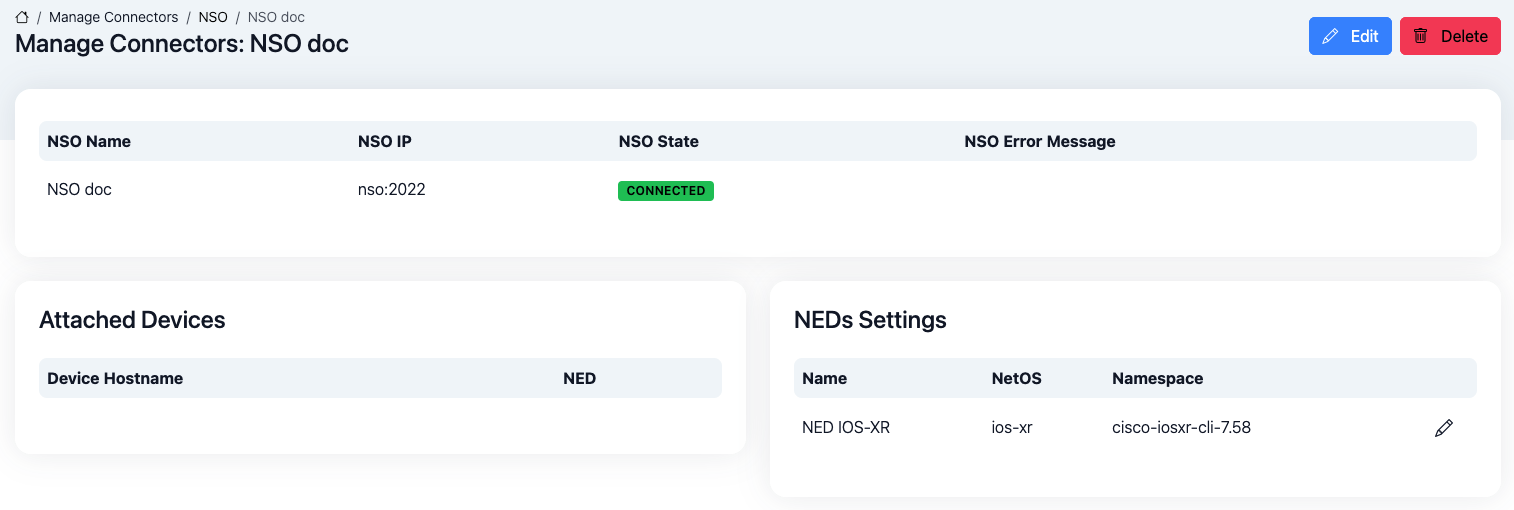

NSO Connector view

Finally, you need to set the NED namespace. Here for IOS-XR CLI NED:

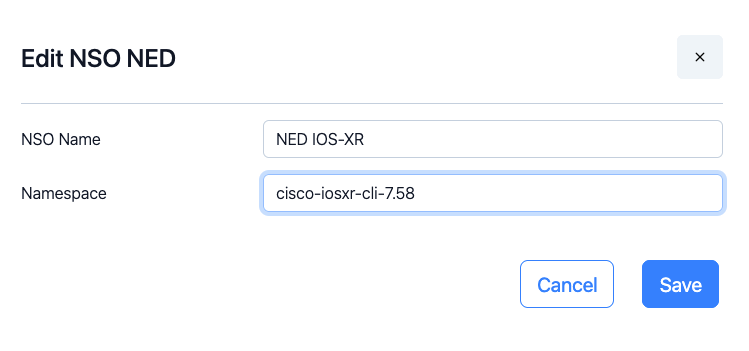

NSO NED form

You can now use this Cisco NSO in Device settings.
